800kg/m抗壓！濟南電纜橋架，破解3大工程痛點，工期省30%

　　800kg/m compression resistance! Jinan cable tray, solves 3 major engineering pain points, saves 30% of construction period

　　干濟南工程的朋友，誰沒被電纜橋架選型愁過？工期緊、人手不足，電纜復試變化多，施工難度拉滿，一個選型失誤，輕則耽誤工期，重則返工整改，損失可不是一星半點——據濟南本地工程數據顯示，42%的布線工程延誤源于橋架選型不當，返工成本平均增加35%，人手不足時，不合理的橋架選型會讓施工效率再降28%。其實不用慌，選對濟南電纜橋架，就能輕松破解這些痛點，今天結合工程實操、實測數據，嘮透不同場景該選哪種橋架，幫濟南工程人省時間、省人力、少踩坑，干活更省心。

　　For friends who work in Jinan engineering, who hasn't been worried about cable tray selection? Due to tight construction schedules, insufficient manpower, frequent changes in cable retesting, and increased construction difficulty, a single selection error can result in minor delays or even rework and rectification, causing significant losses. According to local engineering data in Jinan, 42% of wiring project delays are caused by improper cable tray selection, with an average increase in rework costs of 35%. When there is a shortage of manpower, unreasonable cable tray selection can further reduce construction efficiency by 28%. Actually, there's no need to panic. By choosing the right cable tray in Jinan, you can easily solve these pain points. Today, based on practical engineering and measured data, we will discuss which type of tray to choose for different scenarios, helping Jinan engineers save time, manpower, and avoid pitfalls, making their work more worry free.

　　先戳中核心痛點：濟南工程大多趕進度、人手緊張，尤其是寫字樓、廠房布線，工期往往壓縮10%-20%，這時選對橋架，比多雇人還管用。首推托盤式電纜橋架，堪稱“工期救星”，專門適配時間緊迫、人手不足的場景，實測優勢拉滿。它底部開孔率35%-45%，通風散熱效率達78%，電纜運行溫度可降低4-6℃，不用額外做散熱處理，省去大量工序；結構簡單，采用插接式快速連接，單段安裝僅需2分鐘，比傳統橋架安裝效率提升60%，1名工人1天可安裝80米，相當于2名工人的工作量，大幅緩解人手不足的壓力。

　　First, hit the core pain point: Most of the projects in Jinan are rushed and manpower is tight, especially for office buildings and factory wiring. The construction period is often compressed by 10% -20%. At this time, choosing the right bridge frame is more effective than hiring more people. The first choice is the tray type cable tray, which can be called the "savior of the construction period". It is specially adapted to scenarios with tight schedules and insufficient manpower, and has been tested to fully utilize its advantages. Its bottom opening rate is 35% -45%, the ventilation and heat dissipation efficiency is 78%, and the cable operating temperature can be reduced by 4-6 ℃ without additional heat dissipation treatment, saving a lot of processes; The structure is simple and adopts plug-in quick connection. Single section installation only takes 2 minutes, which is 60% more efficient than traditional bridge installation. One worker can install 80 meters per day, equivalent to the workload of two workers, greatly relieving the pressure of manpower shortage.

　　更省心的是，托盤式橋架載荷充足，常規款承載能力達500kg/m，適配濟南多數工程的電纜敷設需求，不用反復檢查承重，避免后期隱患；施工難度極低，無需復雜工具，新手也能快速上手，可直接縮短布線工期30%，比如濟南某廠房布線工程，選用托盤式橋架后，原本15天的工期，10天就順利完工，還節省了2名工人的人力成本，性價比直接拉滿。

　　What's more worry free is that the tray type bridge has sufficient load capacity, with a conventional load-bearing capacity of up to 500kg/m, suitable for the cable laying needs of most projects in Jinan, without the need to repeatedly check the load-bearing capacity, avoiding potential hazards in the later stage; The construction difficulty is extremely low, no complex tools are required, and beginners can quickly get started. It can directly shorten the wiring construction period by 30%. For example, in a factory wiring project in Jinan, after using tray type cable trays, the original 15 day construction period was successfully completed in 10 days, and the labor cost of 2 workers was saved, which is more cost-effective.

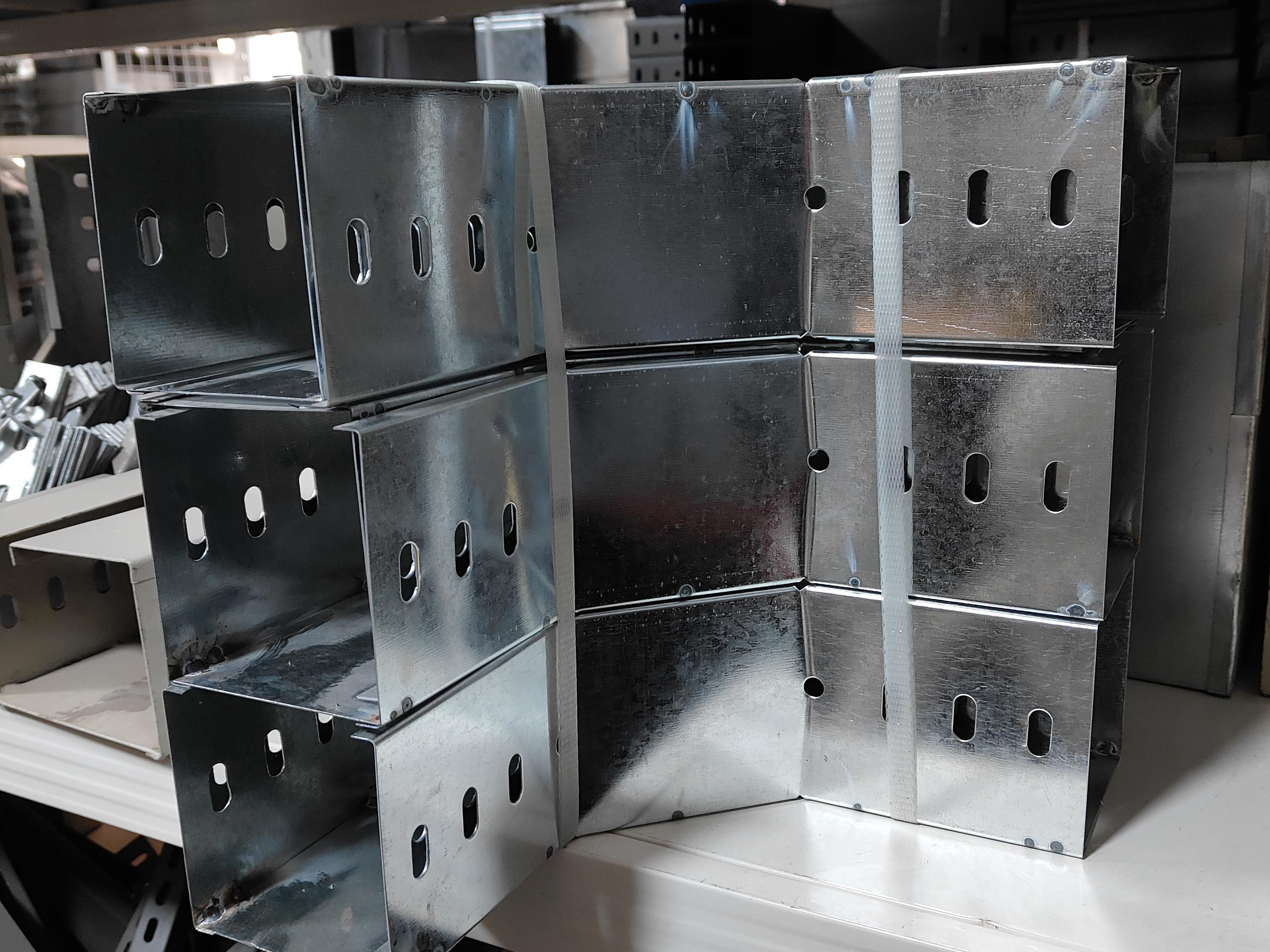

　　如果工程施工難度大，還要求防塵防水，比如濟南地下管廊、戶外工程、粉塵多的車間，那全封閉型槽式電纜橋架就是解。它采用全封閉結構，防護等級可達IP55，比普通封閉橋架防護性提升20%，實測粉塵阻隔率達99.2%、防水滲漏率≤0.8%，能有效阻擋灰塵、雜物、水汽侵入橋架內部，避免電纜復試變化多、線路受損等問題，讓電纜故障率降低85%以上。

　　If the construction difficulty is high and dust and water prevention are required, such as underground pipe galleries, outdoor projects, and workshops with high dust in Jinan, then a fully enclosed trough cable tray is the optimal solution. It adopts a fully enclosed structure with a protection level of up to IP55, which is 20% more protective than ordinary enclosed cable trays. The measured dust barrier rate is 99.2%, and the waterproof leakage rate is ≤ 0.8%. It can effectively prevent dust, debris, and water vapor from entering the interior of the cable tray, avoiding problems such as frequent changes in cable retesting and damage to the circuit, and reducing cable failure rate by more than 85%.

　　槽式橋架側板厚度達1.8-3.2mm，表面經熱鍍鋅處理，耐鹽霧性能達550小時，適配濟南多雨、潮濕的氣候，在地下、戶外等惡劣環境下，能讓電纜使用壽命延長3.5倍，故障間隔時間≥12000小時，不用頻繁維修整改，間接節省工期和成本，特別適合對防護要求高的精密線路、戶外布線工程。

　　The thickness of the side plate of the trough bridge is 1.8-3.2mm, and the surface is hot-dip galvanized. The salt spray resistance performance reaches 550 hours, which is suitable for the rainy and humid climate in Jinan. In harsh environments such as underground and outdoor, it can extend the service life of cables by 3.5 times, with a fault interval of ≥ 12000 hours. It does not require frequent maintenance and rectification, indirectly saving construction time and costs. It is particularly suitable for precision lines and outdoor wiring projects with high protection requirements.

　　還有一種常見痛點：鋪設電纜數量太多，尋常橋架撐不住，尤其是濟南變電站、大型工業園區，電纜直徑大、數量多，動輒幾十根甚上百根，這時抗壓升級的梯式電纜橋架就能解決。它底部配備高強度加強筋設計，抗扭剛度提升50%，承載能力高達800kg/m，比普通梯式橋架抗壓性提升60%，可輕松承載多根高壓電纜，避免橋架變形、坍塌。

　　There is also a common pain point: when laying too many cables, ordinary cable trays cannot support them, especially in Jinan substations and large industrial parks, where the cable diameter is large and the quantity is large, often dozens or even hundreds of cables. At this time, the pressure resistant upgraded ladder type cable tray can perfectly solve the problem. It is equipped with high-strength reinforcement ribs at the bottom, with a 50% increase in torsional stiffness and a bearing capacity of up to 800kg/m. Compared to ordinary ladder style cable trays, it has a 60% increase in compressive strength and can easily support multiple high-voltage cables, avoiding deformation and collapse of the tray.

　　這款抗壓梯式橋架還有兩大優勢，適配多電纜敷設場景：一是結構輕便，重量比同規格槽式橋架輕25%，運輸、安裝更省力，進一步緩解人手不足的壓力；二是散熱，開放式結構通風面積≥75%，散熱效率達98.5%，比普通梯式橋架高3%，能有效降低多根電纜同時運行的溫度，避免線路過熱老化，讓110kV高壓電纜運行溫度穩定在62℃以下，解決眾多電纜鋪設、承載和散熱的三重難題。

　　This pressure resistant ladder style cable tray has two major advantages, suitable for multiple cable laying scenarios: firstly, it has a lightweight structure, with a weight 25% lighter than the same specification trough style cable tray, making transportation and installation more effortless, further relieving the pressure of manpower shortage; The second is excellent heat dissipation, with an open structure ventilation area of ≥ 75% and a heat dissipation efficiency of 98.5%, which is 3% higher than ordinary ladder type cable trays. It can effectively reduce the temperature of multiple cables running simultaneously, avoid overheating and aging of the line, and stabilize the operating temperature of 110kV high-voltage cables below 62 ℃, perfectly solving the triple problems of cable laying, carrying and heat dissipation.

　　除了這三種核心橋架，我們還適配濟南各類工程的差異化需求，提供組合式、玻璃鋼、鋁合金等多種類型電纜橋架，以及全套配套安裝配件，一站式配齊，不用東奔西跑。其中鋁合金橋架耐腐蝕性較普通鋼制橋架提升3倍，使用壽命可達20年以上；玻璃鋼橋架耐腐耐溫，適配濟南沿海、化工等特殊場景，滿足不同工程的定制需求。

　　In addition to these three core cable trays, we also cater to the differentiated needs of various projects in Jinan, providing multiple types of cable trays such as modular, fiberglass, aluminum alloy, as well as a complete set of supporting installation accessories in one stop, without having to travel around. The corrosion resistance of aluminum alloy cable trays is three times higher than that of ordinary steel cable trays, and the service life can reach more than 20 years; Fiberglass cable tray is corrosion-resistant and temperature resistant, suitable for special scenarios such as coastal areas and chemical industries in Jinan, and meets the customized needs of different projects.

　　總結來說，干濟南工程，電纜橋架選型不用愁，記住核心適配邏輯：工期緊、人手足，選托盤式，省時間省人力；難度大、要防護，選槽式，防塵防水保；電纜多、要抗壓，選加強筋梯式，承載散熱雙在線。800kg/m抗壓、98.5%散熱、30%工期節省，這些實打?qū)嵉臄?shù)據，就是濟南工程人選橋架的底氣，選對濟南電纜橋架，破解工程痛點，干活更順利，電纜運行更、更放心。

　　In summary, for the Jinan project, there is no need to worry about the selection of cable trays. Remember the core adaptation logic: tight schedule and manpower, choose tray type to save time and manpower; Difficult and requires protection, with a slotted design that is dust-proof, waterproof, and safe; There are many cables and they need to withstand pressure. Choose a reinforced ladder type to support heat dissipation double line. The solid data of 800kg/m compression resistance, 98.5% heat dissipation, and 30% time saving are the confidence of selecting cable trays for Jinan engineering. Choosing the right cable tray in Jinan can solve the pain points of the project, make work smoother, and ensure safer and more reliable cable operation.
